S202A-MV Presence sensing
Preventing unexpected restart of the machinery has never been easier or safer.
The S202A-MV sensor is specially designed for the Presence Sensing function.
It is highly reliable, extremely easy to configure (only 3 parameters are required) and provides maximum operator safety, while dramatically improving productivity.
It is highly reliable, extremely easy to configure (only 3 parameters are required) and provides maximum operator safety, while dramatically improving productivity.
Easy to install

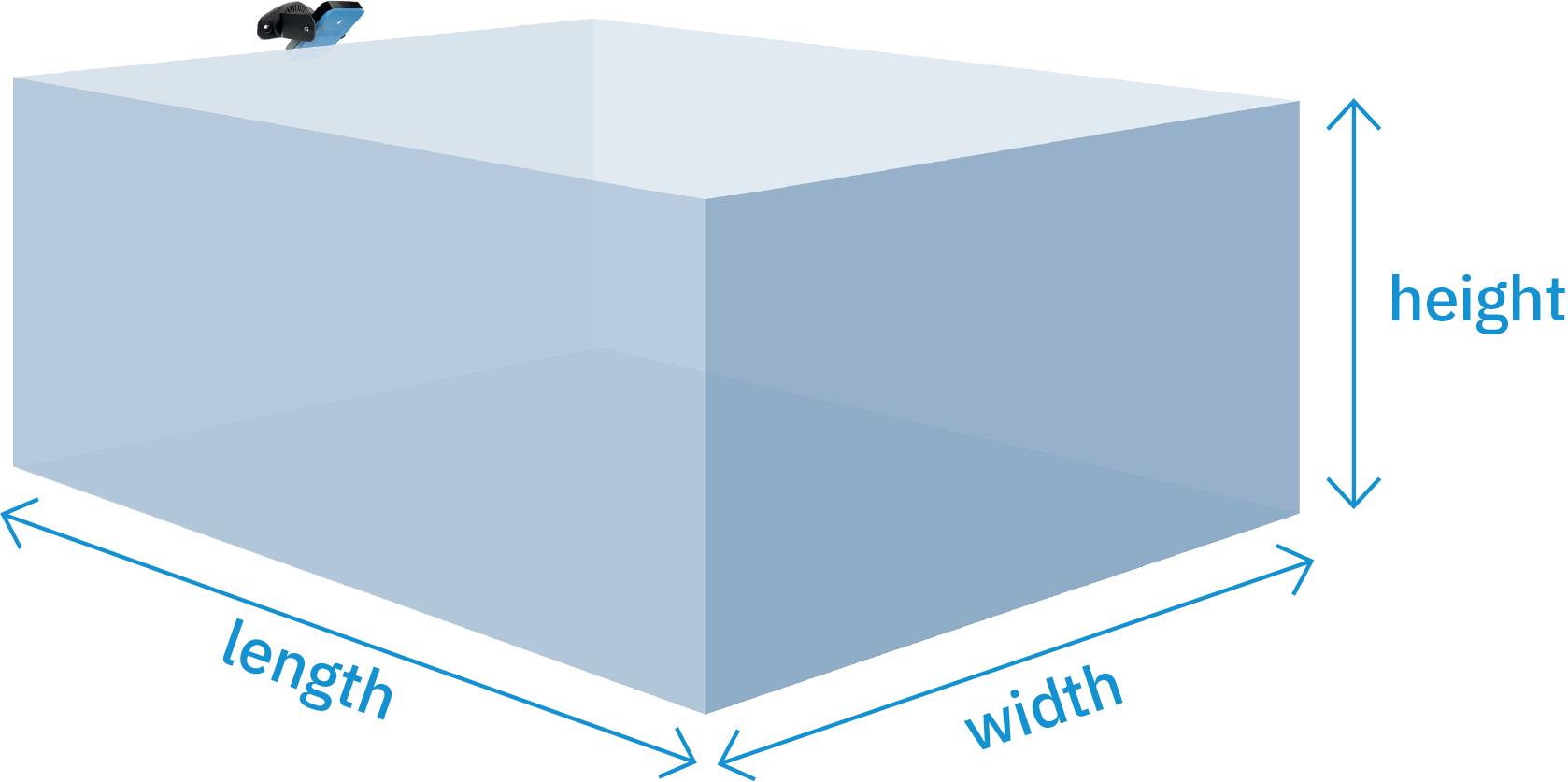

Configuration requires only 3 parameters: height, length and width
Max volume: up to 48 m³
Installation height from 250 cm to 300 cm (from Reference Plane).
Width from -200 cm to +200 cm (min 50 cm).
Width from -200 cm to +200 cm (min 50 cm).
Presence Sensing

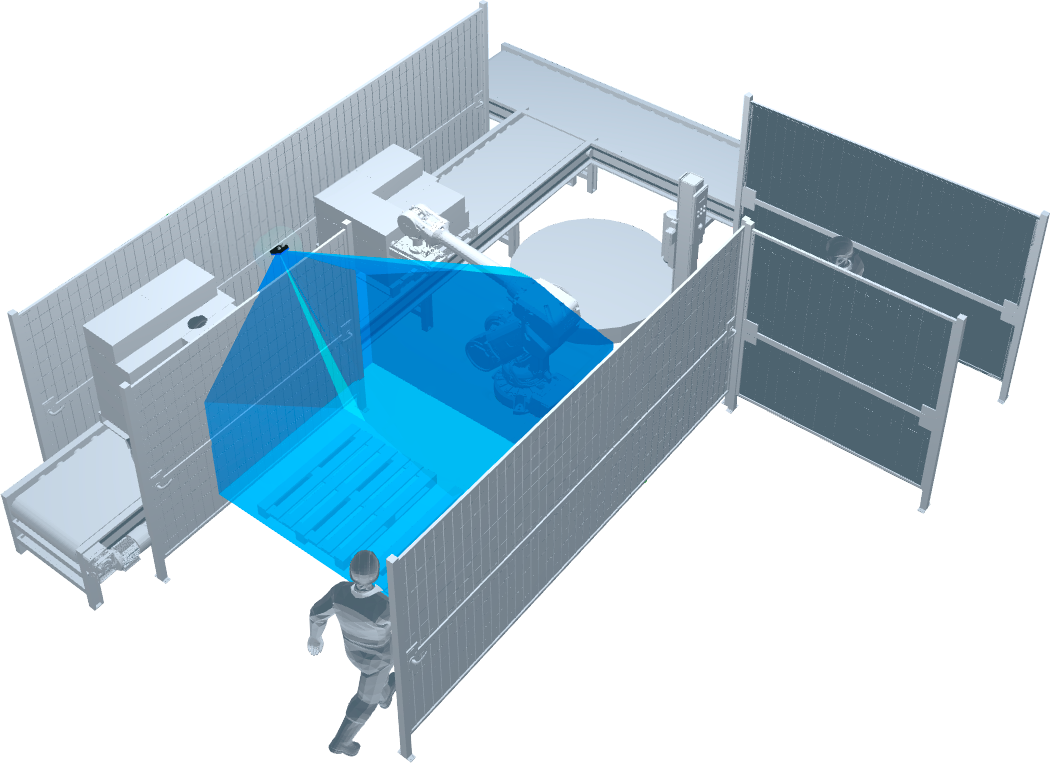

Monitor hazardous area preventing the unexpected startup of the machinery while operators are still inside.
Certified safety function
Maximum reliability
Increased productivity
Easy to install
The S202A-MV is designed to be easy to install and use: only 3 parameters are required.
S202A-MV
Easy to install

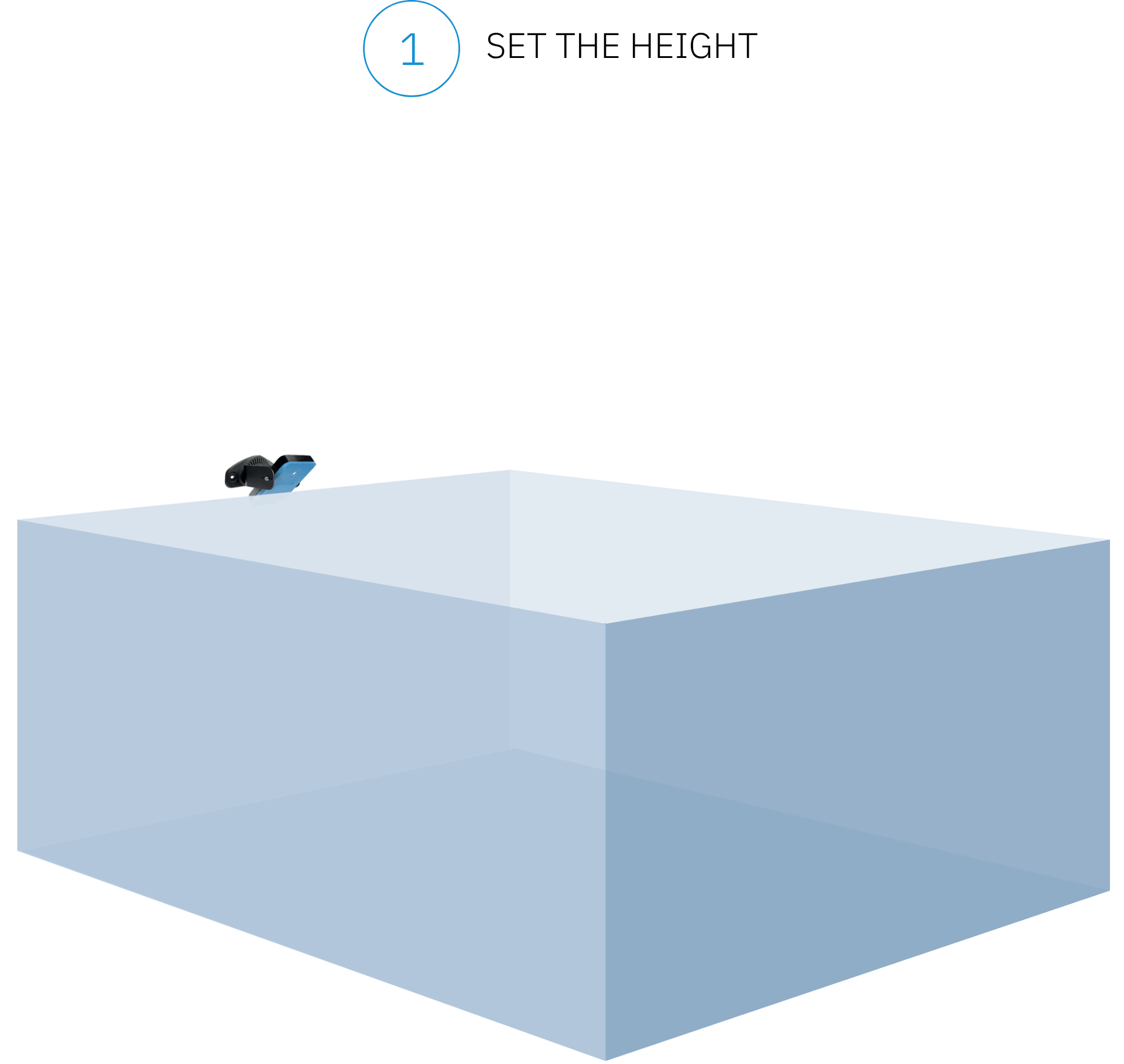

Configuration requires only 3 parameters: HEIGHT, LENGTH and WIDTH
Presence Sensing
Specially designed for the Presence Sensing function
Certified
The S202A-MV sensor is the perfect solution to comply with EN ISO 10218-2
Configuring Inxpect sensors is faster and more intuitive than ever before
Inxpect Safety Studio is the new software for configuration and validation of Inxpect radar sensors. Explore 3D design!
Discover the Inxpect Safety Studio
Technical details
| RADAR SENSOR 200 SERIES (S202A-MV) | |
| Frequency | Millimeter waves V-band: 60 GHz |
| Connectors | Two 5-pin M12 connectors (1 male and 1 female) |
| CAN bus termination resistance | 120 Ω (not supplied, to be installed with termination connector) |
| Power supply | 12 V dc ± 20%, through control unit |
| Power consumption | 2.6 W |
| Degree of protection | IP67 |
| Operating temperature | From -30 to +60 °C (-22 to +140 °F) |
| Case material | Sensor: PA66 (front) + Aluminum (back) | Bracket: PA66 and glass fiber (GF) |
Dimensions
